Unknown availability
Combined passive indoor PoE injector (powering outdoor network elements via Ethernet cable) with integrated surge protection to secure network devices against electrical discharges or overvoltage.
The GESP+POE-IN device is designed for maximum protection of network infrastructure against overvoltage and static discharges, while simultaneously ensuring power supply to connected devices through passive PoE.
Ideal for deployment in installations where network elements need protection against overvoltage while ensuring power supply to remote devices such as antennas, access points, cameras, CPE units, etc. Thanks to its ability to absorb repeated overvoltage surges, it provides long-term protection of your investment.
Important notice
Don't forget proper connection of the grounding wire! Attach it to the rack, mast, or other structure that is connected to ground. Although GESP units can usually absorb multiple overvoltage surges, we recommend checking their condition after each overvoltage event.
Indoor installation

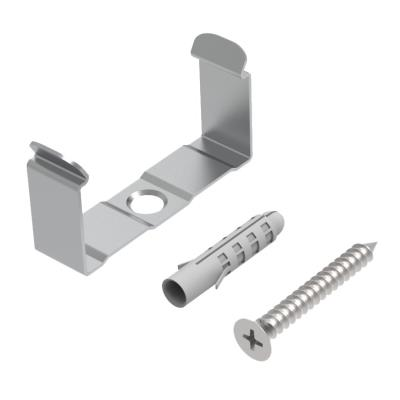

GESP+POE-IN is intended for indoor use, typically on a switch or router port that leads to an outdoor device. Mounting is possible on wall or in rack using the included metal bracket
Combination with other GESP devices
For maximum protection, it is recommended to combine with outdoor version GESP (IP67), which protects devices on the mast. GESP+POE-IN then protects devices inside the building while supplying power
BASIC SPECIFICATIONS
Product code: GESP+POE-IN
Device type: passive PoE injector with surge protection
Interface: RJ-45 connector (male/female)
ESD/EMP protection: absorbs transient currents with response to surge voltage 100 V/s to 1 kV/µs
Contact protection: ±8 kV contact, ±15 kV air
DC sparkover voltage: 75 V at 100 V/s
Maximum impulse sparkover voltage: 700 V at 1 kV/µs
Discharge current: 3 kA (8/20 µs)
Minimum insulation resistance: 1 G? at 50 V
Maximum capacitance: 4 pF at 1 MHz
Data link: RJ-45 10/100/1000 Ethernet
PoE support: passive PoE
Operating temperature: -40 to +70 °C
Package contents: GESP+POE-IN, mounting kit
| Brand | |
| Type specification : | PoE |
| Manufacturer : | MIKROTIK |
| Technical specification | |
| Max. operating temperature (°C) : | 70 |
| Min. operating temperature (°C) : | -40 |
| Network interfaces | |
| Gigabit LAN : | yes |
| LAN : | yes |
| Inputs and outputs | |
| RJ-45 : | 2 |
| Warranty | |
| Warranty period EU (months) : | 26 |
| Warranty period CRN (months) : | 26 |
| Physical properties | |
| Color : | black |
