To send: 2 pcs
Reliable outdoor 4G LTE router with IP65 rating for ensuring internet connectivity in outdoor environments.

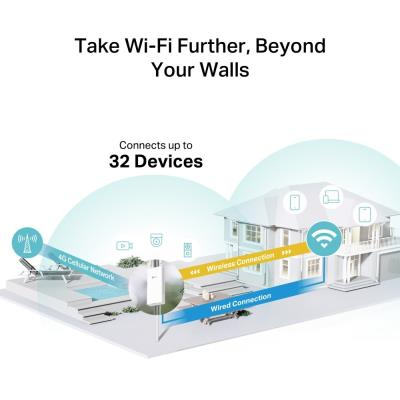

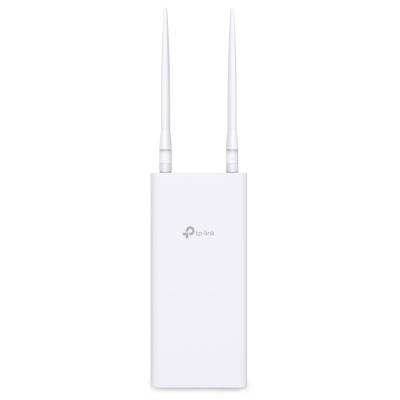

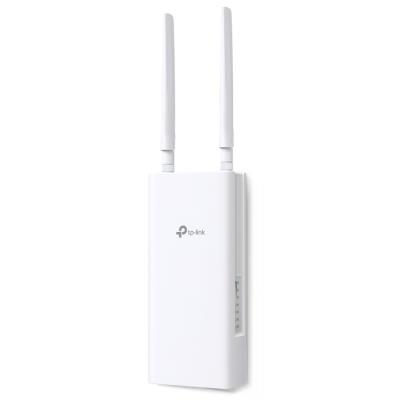

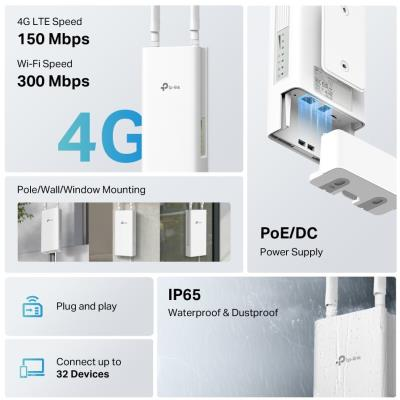

TP-Link TL-MR100-Outdoor is a powerful outdoor router supporting 4G LTE networks and Wi-Fi speeds up to 300 Mbps. Its robust IP65-certified design withstands harsh weather conditions, dust, and water. The router supports up to 32 devices simultaneously and provides stable internet access for homes and businesses in areas without fixed broadband.

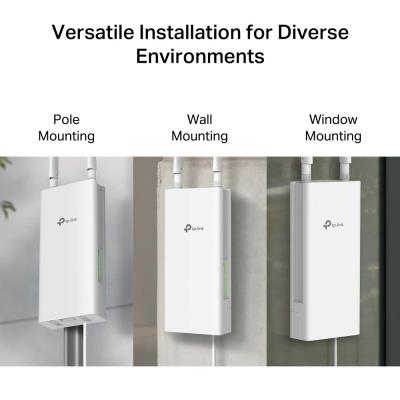

The device features two detachable LTE antennas for improved signal coverage and offers flexible power options via PoE or DC adapter. Thanks to its support for multiple mounting options (wall, window, or pole), it can be easily installed in various outdoor settings.
Universal connectivity and reliability
The router supports a wide range of 4G LTE bands (FDD-LTE B1/B3/B5/B7/B8/B20/B28 and TDD-LTE B38/B40/B41) and is backward compatible with 3G networks. The WAN port allows the device to function as a standard router with a fixed internet connection, offering flexibility for different scenarios.
Easy setup and management
An intuitive web interface enables quick and easy installation without complex configuration. The router offers advanced features such as guest network creation, access control via allowed/blocked device lists, and support for dynamic DNS.
Comprehensive security
Built-in security features include WPA/WPA2 encryption, SPI firewall, DoS protection, and IP & MAC address binding. The guest network allows the creation of a separate connection for visitors without access to the main network.
TECHNICAL SPECIFICATIONS
Wireless standard: IEEE 802.11b/g/n
Frequency: 2.4 GHz
Wi-Fi speed: up to 300 Mbps
4G LTE speed: download up to 150 Mbps, upload up to 50 Mbps
Supported networks: 4G FDD-LTE/TDD-LTE, 3G DC-HSPA+/HSPA/UMTS

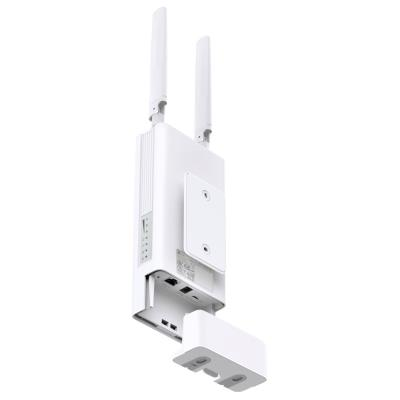

Ports: 1× 100 Mbps WAN/LAN (PoE In), 1× Nano SIM card slot, 1× DC port
Antennas: 2× detachable LTE antennas
Protection rating: IP65 (dust and water resistance)
Power supply: 12 V/1 A DC, 48 V/0.375 A passive PoE, 44–57 V/0.35 A 802.3af
Operating temperature: -30 to +60 °C
Dimensions: 226.6 × 100 × 54.7 mm
Weight: not specified
Package contents: TL-MR100-Outdoor router, 10m Ethernet cable, PoE adapter, power cable, mounting kit, installation guide
| Brand | |
| Type specification : | Router |
| Manufacturer : | TP-LINK |
| Technical specification | |
| Sensitivity (dBm) : | -70 (802.11n HT40), -74 (802.11g 54M) |
| DHCP : | yes |
| Ethernet (Mbps) : | 100 |
| LTE/4G/5G (Mbps) : | 150 |
| IPv6 support : | ano |
| Outdoor use : | yes |
| Indoor use : | yes |
| Placement : | wall mount |
| Placement : | pole mount |
| Max. operating temperature (°C) : | 60 |
| Min. operating temperature (°C) : | -30 |
| Data Rate (Mbps) : | 300 |
| Wi-Fi 2,4 GHz (Mbps) : | 300 |
| Display | |
| Display : | no |
| Communication | |
| 3G support : | yes |
| 4G/LTE support : | yes |
| 5G support : | no |
| Network interfaces | |
| Wi-Fi frequency : | 2400 MHz |
| Gigabit LAN : | no |
| LAN : | yes |
| Standards : | 802.11b/g/n |
| Standards : | 802.3af |
| Port Speed : | 100 Mb/s |
| Standard Wi-Fi : | 802.11b/g/n |
| Encryption : | WPA/WPA2, WPA-PSK/WPA2-PSK |
| Wi-Fi : | yes |
| WEP security : | no |
| WPA security : | yes |
| WPA2 security : | yes |
| WPA3 security : | no |
| Antenna | |
| Connectable antennas : | 2 |
| Antenna type : | detachable |
| Inputs and outputs | |
| RJ-45 : | 1 |
| Slots : | 1× WAN/LAN, 1× SIM slot |
| Output to Ext. antenna : | yes |
| Card reader | |
| MicroSD card support : | no |
| Power supply | |
| Input voltage (V) : | 12 (DC) |
| Input voltage (V) : | 48 (PoE) |
| Input voltage (V) : | 44 - 57 (PoE) |
| Max. Voltage (PoE) (V) : | 57 |
| Min. Voltage (PoE) (V) : | 44 |
| PoE support : | yes |
| Warranty | |
| Warranty period EU (months) : | 36 |
| Warranty period CRN (months) : | 36 |
| Support | |
| SIM slot : | yes |
| Physical properties | |
| Color : | white |
| Dimensions : | 226,6 × 100 × 54,7 mm |
| Additional equipment and features | |
| Certification mark : | CE, RoHS |
Code: NARTPL1069
