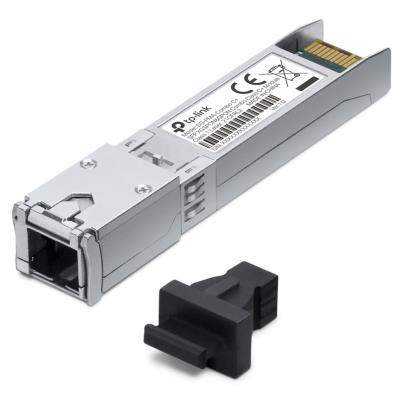

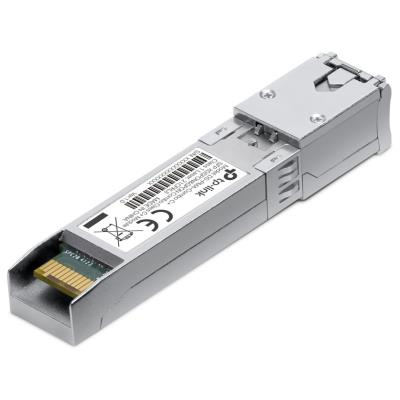

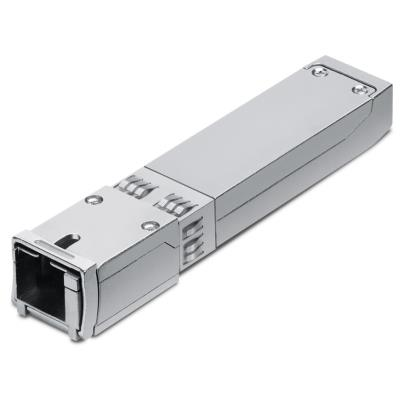

Universal SFP+ module for all types of PON networks with support for gigabit speeds.
The advanced Combo PON SFP+ module enables flexible deployment in optical networks thanks to support for all three main PON technologies – XGS-PON, XG-PON, and GPON. The module provides symmetric transmission up to 10 Gbps with XGS-PON technology and ensures reliable connectivity over distances of up to 20 km.
Thanks to the hot-swap function, the module can be replaced during operation without shutting down the device. Integrated DDM diagnostic functions allow centralized monitoring of parameters such as voltage, optical power, and temperature in real time.
Optical parameters and compatibility
The module operates with different wavelengths depending on the technology used – XGS-PON and XG-PON use 1577 nm for transmission and 1270 nm for reception, while GPON uses 1490 nm and 1310 nm. Receiver sensitivity reaches up to -32 dBm with GPON technology.
Advanced diagnostic functions
Integrated DDM monitoring provides insight into key operating parameters including transmitter and receiver optical power, supply voltage, and operating temperature. This information is available through a standard interface for centralized network management.
SPECIFICATIONS
Module type: combo PON SFP+
Supported technologies: XGS-PON, XG-PON, GPON
XGS-PON speed: 9.953 Gbps (bidirectional)
XG-PON speed: 9.953 Gbps down / 2.488 Gbps up
GPON speed: 2.488 Gbps down / 1.244 Gbps up
Range: max. 20 km
Optical fiber: single-mode 9/125 µm
Connector: SC/UPC
Power supply: 3.3 V (± 5%)
Diagnostics: DDM, OMCI protocol
Hot-swap: yes
| Brand | |
| Type specification : | Optical module |
| Manufacturer : | TP-LINK |
| Technical specification | |
| Médium : | Single Fiber |
| Data Rate (Mbps) : | 10000 |
| Wavelength (nm) : | 1270/1577 |
| Network interfaces | |
| DDM diagnostics : | yes |
| Cable distance : | 20 km |
| SFP module compatibility : | TP-Link |
| Port Speed : | 10 Gb/s |
| SFP module speed : | 10 Gbps |
| Module type : | SFP+ |
| Connector type : | SC |
| Inputs and outputs | |
| Connector : | SC |
| SFP+ : | 1 |
| Power supply | |
| Input voltage (V) : | 3,3 |
| Warranty | |
| Warranty period EU (months) : | 36 |
| Warranty period CRN (months) : | 36 |
| Physical properties | |
| Color : | grey |
| Fiber specification : | 9/125um |
| Fiber type : | singlemode |
| Vlnová délka : | 1270 nm |
| Vlnová délka : | 1577 nm |
Code: NAOMKR1025
