After order for 3 days
Managed Gigabit switch with PoE+ and 10 Gigabit uplinks for demanding enterprise networks.

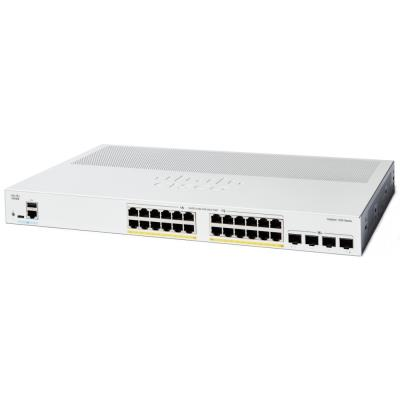

Cisco Catalyst 1300-24P-4X is a powerful L3 switch designed for small and medium businesses and branch offices of large companies. It offers 24 Gigabit ports with PoE+ support and a total budget of 195 W, enabling power delivery to IP phones, wireless access points, and IP cameras directly through the network cable. For backbone network connectivity, there are 4 x 10 Gigabit SFP+ ports.
The switch runs on a customized Linux operating system and supports advanced features such as dynamic L3 routing, front-panel port stacking (up to 8 units), comprehensive QoS, and robust security including 802.1X authentication. Management is simplified with Cisco Business Dashboard featuring AI assistant and support for Cisco Network Plug and Play for automated deployment.
Advanced network features
The switch supports RSTP/MSTP/PVST+ for rapid convergence, LACP for aggregation of up to 8 ports, IGMP snooping for multicast optimization, and IPv6 including First Hop Security. Loopback detection and UDLD features protect the network from loops.
Management and monitoring
In addition to Cisco Business Dashboard, CLI with privilege levels 1/7/15 is available, SNMP for integration with NMS systems, RMON for advanced monitoring, sFlow for flow analysis, and port mirroring/RSPAN for diagnostics. Supports syslog, SNTP, and TFTP/SCP for configuration management.
Stacking and high availability
Front-panel port stacking uses 10G SFP+ ports and enables creation of a redundant stack with active/standby controller. Supports cross-stack LAG, QoS, and VLAN across the entire stack. Dual firmware image system ensures safe firmware updates.
Compatible SFP+ modules
The switch supports a wide range of Cisco SFP+ modules including SFP-10G-SR/LR/ER for optical connections, SFP-10G-T-X for 10GBase-T copper, SFP-H10GB-CU twinax cables, and SFP-10G-AOC active optical cables.
KEY SPECIFICATIONS
Ports: 24× 10/100/1000 Mbps RJ-45 PoE+, 4× 10G SFP+
Console ports: 1× USB-C, 1× RJ-45
USB ports: 1× USB 2.0 (for Bluetooth dongle, firmware, configuration)
Stacking: up to 8 switches
PoE budget: 195 W (802.3at/af PoE+, up to 30 W per port)
Switching capacity: 128 Gbps
Throughput: 95.23 Mpps
MAC table: 16,000 addresses
VLAN: up to 4,094 active VLANs simultaneously
Memory: 1 GB DDR4 RAM, 1 GB SLC Flash
Processor: Dual-core ARM, 1.5 GHz
Buffer memory: 1.5 MB
Power supply: 100–240 V AC, 50–60 Hz (internal PSU)
Power consumption: max. 31.8 W (with PoE 232.9 W), idle 14.8 W
Cooling: fanless (passive)
Dimensions: 444.3 × 299 × 43.94 mm
Weight: 3.95 kg
Operating temperature: -5 to +50 °C
MTBF: 337,232 hours at 25 °C
Certifications: UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A
| Brand | |
| Type specification : | Switch |
| Manufacturer : | CISCO |
| Technical specification | |
| Fanless : | yes |
| Homologation EN50155 : | no |
| Switching capacity (Gbps) : | 128 |
| Management : | yes |
| Standard : | 802.3af |
| Standard : | 802.3at |
| PoE-in : | no |
| PoE-out : | 802.3af/at |
| PoE-out (quantity) : | 24 |
| Outdoor use : | no |
| Max. operating temperature (°C) : | 50 |
| Min. operating temperature (°C) : | -5 |
| Placement : | rack |
| Switch throughput (Mpps) : | 95,23 |
| Stackable : | Hardware stack |
| OSI layer : | L3 dynamic |
| Display | |
| Display : | no |
| Network interfaces | |
| Gigabit LAN : | yes |
| LAN : | yes |
| Number of PoE ports : | 24 |
| Port Speed : | 1 Gb/s + 10 Gb/s |
| Inputs and outputs | |
| RJ-45 : | 24 |
| RJ-45 console/management : | 1 |
| RS-232 : | no |
| SFP+ : | 4 |
| USB 2.0 : | 1 |
| Card reader | |
| MicroSD card support : | no |
| Power supply | |
| Power type : | internal power supply |
| PoE support : | yes |
| Input Voltage (V) : | 100 - 240 (AC) |
| Physical properties | |
| Color : | white |
| Weight (g) : | 3950 |
| Dimensions : | 444,3 × 299 × 43,94 mm |
| Additional equipment and features | |
| Certification mark : | UL (UL 62368), CSA (CSA 22.2), CE, FCC Part 15 (CFR 47) Class A |
| Warranty | |
| Warranty period EU (months) : | 24 |
| Warranty period CRN (months) : | 24 |
