After order for 3 weeks
Compact industrial IoT gateway with LTE Cat 6 support and advanced M2M protocols for demanding applications.

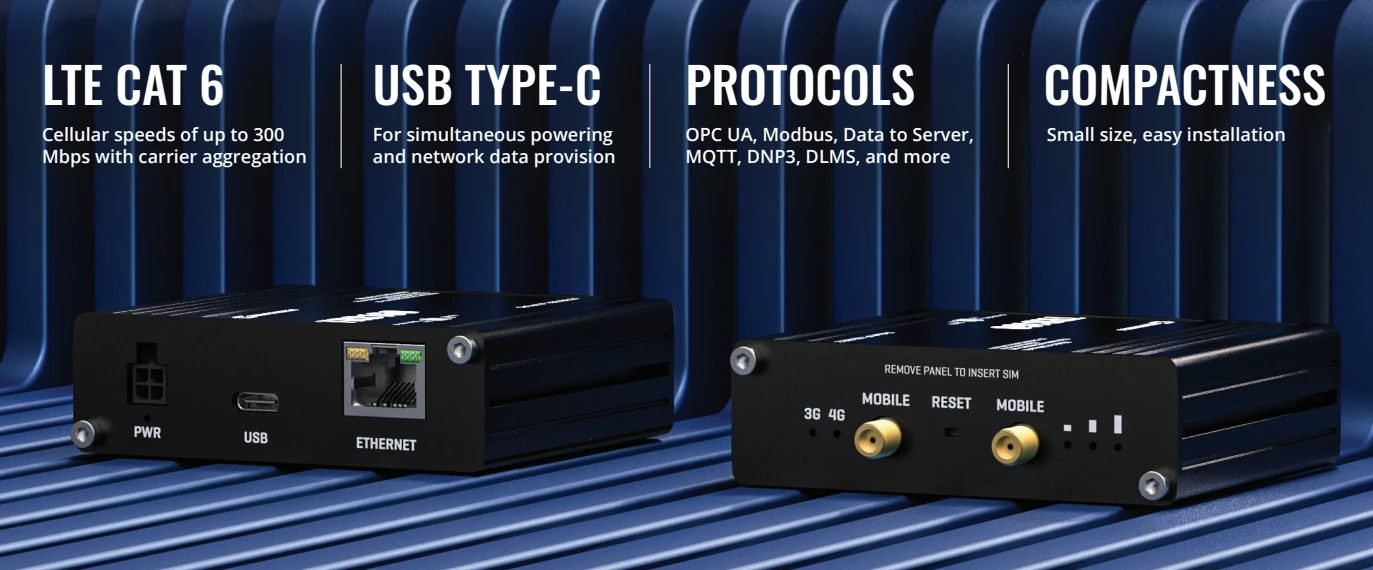

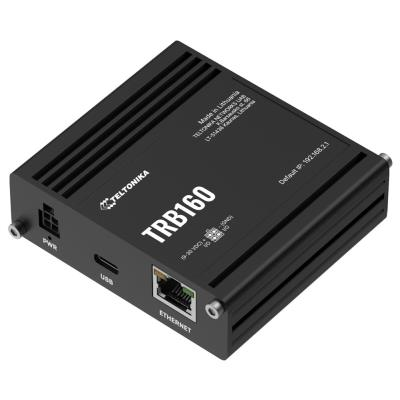

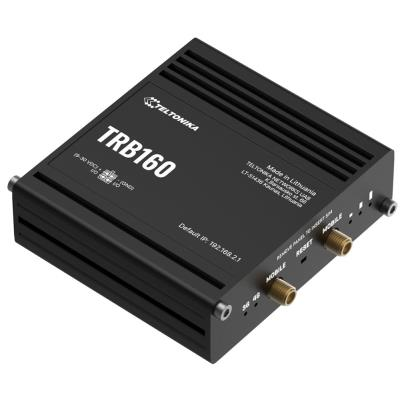

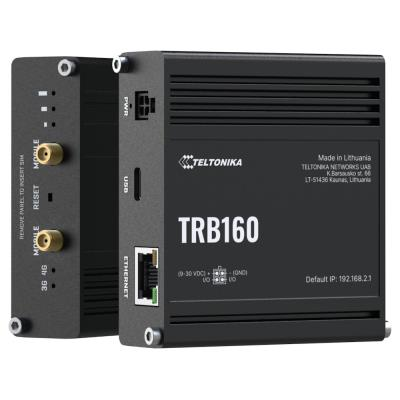

Teltonika TRB160 is an ultra-compact industrial gateway designed for M2M communication and IoT applications. The device offers mobile connectivity 4G LTE Cat 6 with speeds up to 300 Mbps download and 50 Mbps upload. For wired connectivity, it features a Gigabit Ethernet port (10/100/1000 Mbps) and a unique USB-C interface that supports simultaneous power and network connection.
The gateway is equipped with a Qualcomm processor at 1.2 GHz, 128 MB RAM and 256 MB Flash memory. The RutOS operating system (based on OpenWrt Linux) offers advanced features including OpenVPN, IPsec, GRE, PPTP, L2TP, WireGuard and other VPN protocols. The aluminum housing with dimensions 83 × 74.2 × 25 mm and weight 172 g ensures durability in industrial environments with operating temperature -40 to +75 °C.
Mounting on DIN rail, wall or flat surface (mounting brackets not included).
Industrial protocols and IoT integration
The gateway supports MODBUS TCP (server/client), OPC UA (client), DNP3 (station/outstation), DLMS/COSEM for energy meters and MQTT Gateway for communication with MODBUS servers via MQTT broker. Data to Server function enables data transmission via HTTP(S), MQTT or Azure MQTT with custom LUA scripts support.
Network features and security
Advanced routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), firewall with DDOS protection, port forwarding, QoS/SQM, VLAN separation, DDNS (25+ providers), DNS over HTTPS. Authentication using pre-shared key, X.509 certificates, TACACS+, RADIUS, SSL certificate generation (Let's Encrypt, SCEP).
Mobile features
SMS management (email to SMS, SMS to HTTP, scheduled SMS, SMPP), USSD support, multiple PDN, band lock, Auto APN, mobile bridge/passthrough. Support for 4G LTE-FDD bands B1, B3, B5, B7, B8, B20, B28, B32 and LTE-TDD B38, B40, B41, 3G bands B1, B3, B5, B8.
Package contents
TRB160, power adapter (9 W), 2× mobile antenna (magnetic, SMA, 3m cable), USB-C cable (0.8 m), Ethernet cable (1.5 m), hex key, manual.
BASIC SPECIFICATIONS
Processor: Qualcomm, 1.2 GHz, ARM Cortex-A7
Memory: 128 MB RAM, 256 MB Flash
Mobile connectivity: 4G LTE Cat 6 (300/50 Mbps), 3G (42/5.76 Mbps), 3GPP Release 12
LTE bands: FDD B1/B3/B5/B7/B8/B20/B28/B32, TDD B38/B40/B41
3G bands: B1/B3/B5/B8
Ethernet: 1× RJ-45 10/100/1000 Mbps, IEEE 802.3/802.3u/802.3az, auto MDI/MDIX
USB: 1× USB-C (USB 3.0, power + data)
SIM: 1× mini SIM (2FF)

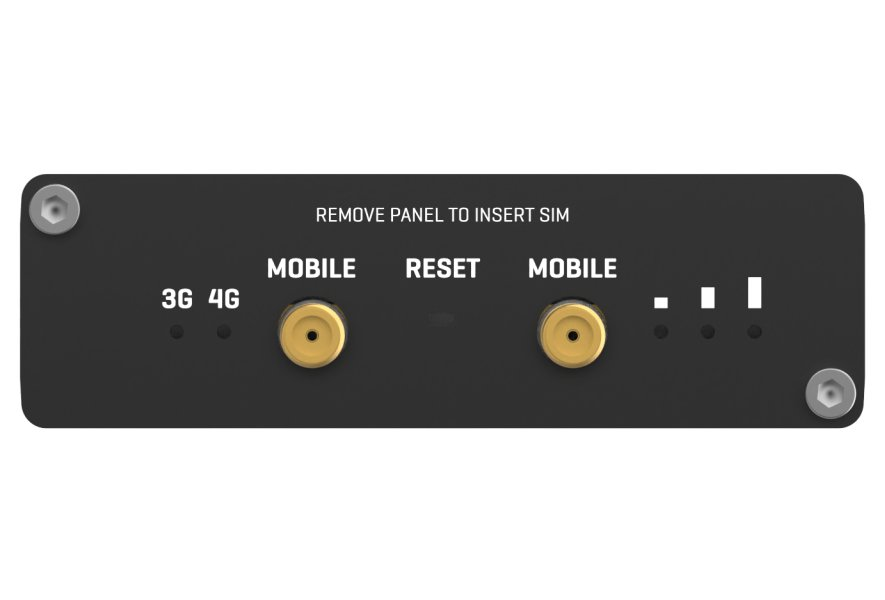

Antennas: 2× SMA for mobile network
I/O: 1× digital input (0–6 V low, 8–30 V high), 1× digital output (max. 30 V, 300 mA)
Power supply: 4pin (DC 9–30 V), USB-C (DC 5 V), passive PoE (DC 9–30 V)
Power consumption: max. 3.3 W
Operating system: RutOS (OpenWrt Linux)
Operating temperature: -40 to +75 °C
Protection: IP30
Dimensions: 83 × 74.2 × 25 mm
Weight: 172 g
| Brand | |
| Type specification : | Modem |
| Manufacturer : | TELTONIKA |
| Technical specification | |
| Ethernet (Mbps) : | 1000 |
| LTE/4G/5G (Mbps) : | 300 |
| Outdoor use : | no |
| Indoor use : | yes |
| Max. operating temperature (°C) : | 75 |
| Min. operating temperature (°C) : | -40 |
| Placement : | desktop |
| Placement : | DIN rail |
| Placement : | wall mount |
| Data Rate (Mbps) : | 300 (LTE) |
| Ingress protection : | IP30 |
| Memory | |
| Memory size (MB) : | 128 |
| Network interfaces | |
| Gigabit LAN : | yes |
| LAN : | yes |
| Standards : | 802.3, 802.3u, 802.3az |
| Port Speed : | 1 Gb/s |
| Wi-Fi : | no |
| Antenna | |
| Connectable antennas : | 2 |
| Antenna type : | without own antenna (SMA) |
| Inputs and outputs | |
| RJ-45 : | 1 |
| Slots : | 1× SIM |
| Output to ext. antenna : | yes |
| Power supply | |
| Input voltage (V) : | 9 - 30 (DC) |
| Max. Voltage (jack) (V) : | 30 |
| Max. Voltage (PoE) (V) : | 30 |
| Min. Voltage (jack) (V) : | 9 |
| Min. Voltage (PoE) (V) : | 9 |
| PoE support : | yes |
| Power consumption - typical (W) : | 3.3 |
| Operating system | |
| Operating system : | RutOS |
| Security | |
| Default IP : | 192.168.2.1 |
| Physical properties | |
| Color : | black |
| Depth (mm) : | 25 |
| Weight (g) : | 172 |
| Weight (kg) : | 0.172 |
| Dimensions : | 83 × 74,2 × 25 mm |
| Width (mm) : | 74.2 |
| Height (mm) : | 83 |
| Additional equipment and features | |
| LED indication : | yes |
| Certification mark : | CE, UKCA, CB, EN, EN-IEC |
| Warranty | |
| Warranty period EU (months) : | 26 |
| Warranty period CRN (months) : | 26 |
